Rub Resistance Tester BS - Model - R202

Lloyds Laboratory Rub Resistance Tester is a tool for visually comparing the rubbing, scuffing and marking of inks and coatings on commercial print and packaging on a wide range of substrates.

It can be used as part of quality control in a production environment or an aid to development in the laboratory

The tester uses a rotary motion to abrade the printed surface against virgin material, face to face against itself or to a reference material. The user can vary the abrasion force or number of cycles to adjust the severity of the test.

Download A PDF Brochure
  • Easy setup and configuration for fast test
  • Programmable cycle for unsupervised test runs
  • Compact and maintenance free design
  • 0.5, 1.0 and 2.0 PSI test weights
  • Test Speed : 60 RPM
  • Power 230 V 50/60 Hz
  • Ink Manufacturers
  • Printers
  • Packers
  • BS 3110
  • BS 2782
  • ASTM D 5264
  • TAPPI T830

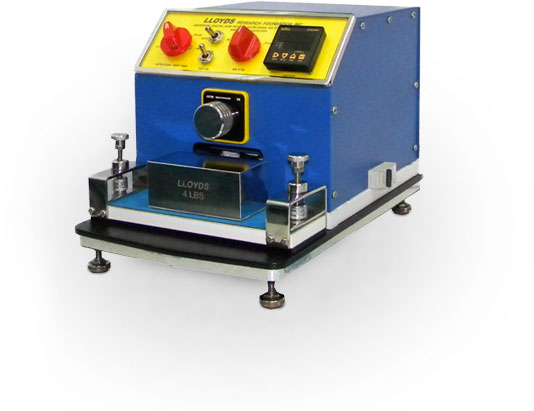

Ink Rub Resistance - ASTM / BS - Model - URT 101

Lloyds laboratory Rub Resistance Tester is a tool for comparing the rubbing, scuffing and marking of inks and coatings on commercial print and packaging. This tester allows the user to visually compare the performance of different batches of production, ink/varnish formulations or substrates under the same abrasive conditions.

It is designed to determine the quality of adhesion, and scuff resistance of ink to paper surfaces, plastic and aluminium film. It will dry or wet rub the sample until it achieves the pre-set value.

Download A PDF Brochure
  • 2 in 1 unit for ASTM and BS test method
  • Easy setup and configuration for fast test
  • Programmable cycle to run test unsupervised
  • Compact and Maintenance free design
  • 2 LBS and 4 LBS test weights
  • Test Speed: (ASTM) 21/42/85/105 Rubs/min & (BS) 47 Rubs/min
  • Cutting templates: Sample: 152 x 51mm & Base: 152 x 76mm
  • Ink Manufacturers
  • Printers
  • Packers
  • Packaging Developers
  • Part of quality control in production
  • Aid to development
  • BS 3110
  • BS 2782
  • ASTM D 5264
  • TAPPI T830
